JF-17 Thunder: China-Pakistan’s Multirole Fighter Jet

Share

Table of Contents:

The JF-17 Thunder, also known as the Joint Fighter-17, is a multirole combat aircraft jointly developed by the Pakistan Aeronautical Complex (PAC) and Chengdu Aircraft Industry Group (CAIG) of China. Designed to offer an affordable yet capable platform, the JF 17 fighter was developed as a replacement for Pakistan’s aging fleet, including the Mirage III/V, F-7, and A-5 aircraft. Since entering service with the Pakistan Air Force (PAF) in 2007, the JF-17 jet has played a central role in bolstering Pakistan’s air defense capabilities.

The latest and most advanced version, the JF-17 Thunder Block 3, introduces 4.5-generation features such as an AESA radar, helmet-mounted display, and enhanced electronic warfare systems. With the JF 17 Block 3 cockpit redesigned for modern warfare, the aircraft now offers pilots improved situational awareness and BVR (beyond visual range) engagement capabilities. These advancements allow the JF-17 Thunder Block 3 to rival aircraft like the F-16 Falcon and India’s Tejas Mk1A in many mission profiles, while still maintaining a lower operating cost.

JF-17 Thunder

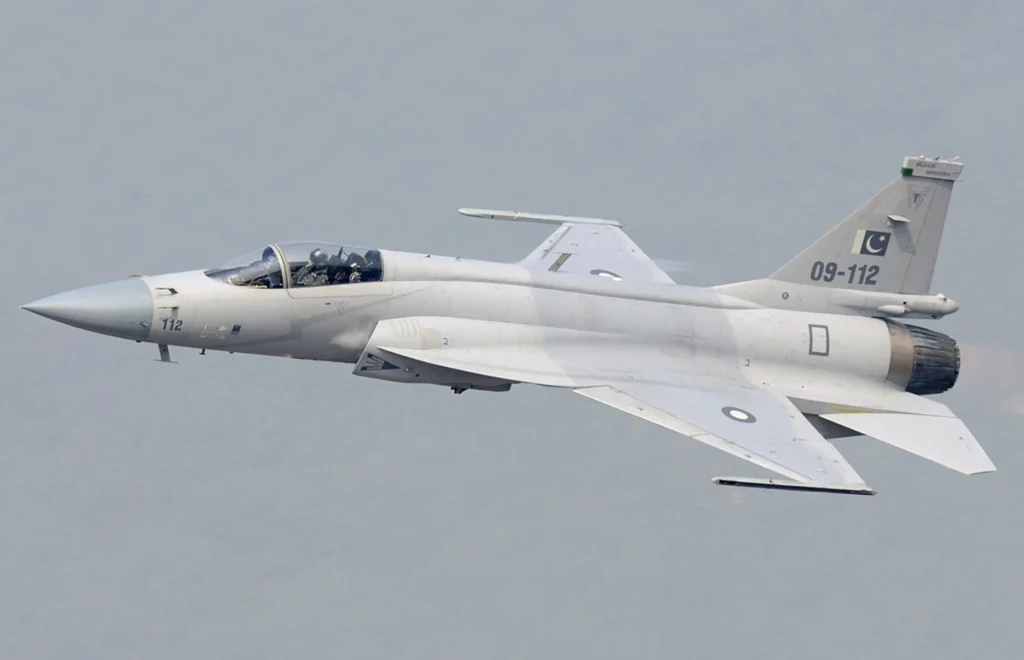

JF-17A Block 1 of the Pakistan Air Force. Source: Wikimedia Commons

Beyond Pakistan, the JF-17 Thunder fighter jet has attracted global interest due to its cost-effectiveness and adaptability. Nations in Africa, Asia, and Latin America see it as a budget-friendly alternative to Western jets, free from political constraints.

As development of the JF-17 Block 4 progresses, with rumors of improved stealth features and further avionics upgrades, the JF-17 Thunder continues to evolve as a modern symbol of defense autonomy and multilateral cooperation.

Development and History

The JF-17 Thunder was developed out of necessity in the late 1990s when Pakistan faced the challenge of modernizing its aging fleet of fighter jets while working with a limited defense budget. Collaborating with China, both nations combined their expertise to create a capable, cost-effective multirole fighter. The JF-17 was designed to replace older aircraft like the Mirage III and F-7, which were no longer suitable for modern combat.

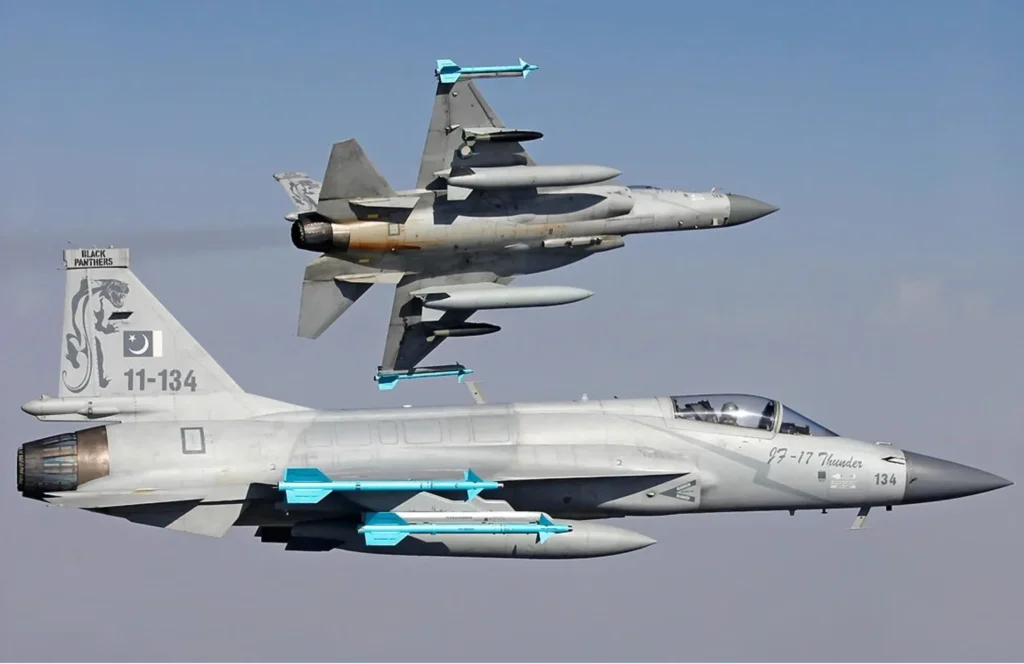

jf 17 thunder fighter jet
JF 17 Thunder fighter jet. Picture credit: defensesecurityasia.com

The development of the JF-17 Thunder began in the late 1990s, with the first prototype taking flight in 2003. Pakistan’s objective was clear: to produce a modern fighter jet with advanced capabilities at a price affordable for developing nations.

The JF-17’s design prioritized simplicity and cost-efficiency, incorporating Chinese and Pakistani technology to ensure low production costs while still providing reliable performance. The aircraft features modern avionics, a capable radar system, and a versatile weapon suite for both air-to-air and air-to-ground combat.

Over the years, the JF-17 Thunder has undergone significant upgrades. The Block 2 variant, introduced in 2010, improved avionics, weapons systems, and radar capabilities. The more recent Block 3 version marks a major advancement, with modern radar technologies, enhanced cockpit displays, and new weapon options.

Looking ahead, the JF-17 Block 4 upgrade promises to enhance stealth, avionics, and engine performance, further boosting the aircraft’s capabilities. This ongoing development highlights Pakistan’s growing aerospace industry and the strong defense partnership with China.

Technical Specifications

The JF-17 Thunder is a sleek, single-engine fighter that combines impressive performance with a relatively light airframe, making it highly maneuverable and versatile for a wide range of missions. Despite its relatively low cost, the JF-17 jet offers many features that rival more expensive fourth-generation fighter aircraft. Let’s delve into its key specifications that make it stand out as a capable multirole platform.

Dimensions and Performance

The JF-17 Thunder measures 14.93 meters in length, 9.47 meters in wingspan, and stands 4.77 meters tall. These dimensions allow for a balanced design with excellent agility, ideal for dogfights and evasive maneuvers. The aircraft’s maximum speed is around Mach 1.6, which is sufficient for high-speed interceptions and evading threats at long ranges. Its operational range extends up to 3,000 kilometers with drop tanks, making it suitable for a variety of air-to-ground and air-to-air missions.

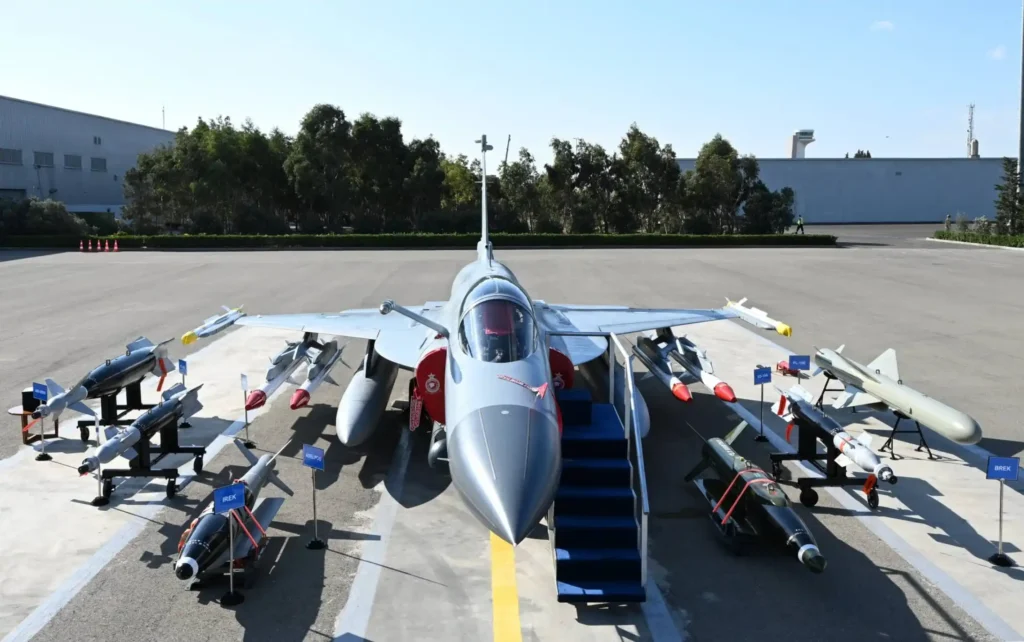

jf 17 block 3 design
Picture source: Wikimedia Commons

The JF-17 Thunder is powered by the Klimov RD-93 turbofan engine, which delivers a thrust of about 8,300 pounds. This engine is known for its reliability and is adapted from the Russian RD-33, which is used in the MiG-29. The engine provides the JF-17 Thunder with a thrust-to-weight ratio that ensures impressive acceleration and high-speed maneuverability, essential characteristics for a modern fighter.

Avionics and Radar Systems

One of the standout features of the JF-17 Thunder is its sophisticated avionics suite, which has undergone significant upgrades in the JF-17 Block 3 variant. The Block 3 integrates the KLJ-7A active electronically scanned array (AESA) radar, providing the aircraft with superior detection and tracking capabilities, even in cluttered environments. This radar allows for simultaneous air-to-air and air-to-ground targeting, enhancing the fighter’s versatility in combat.

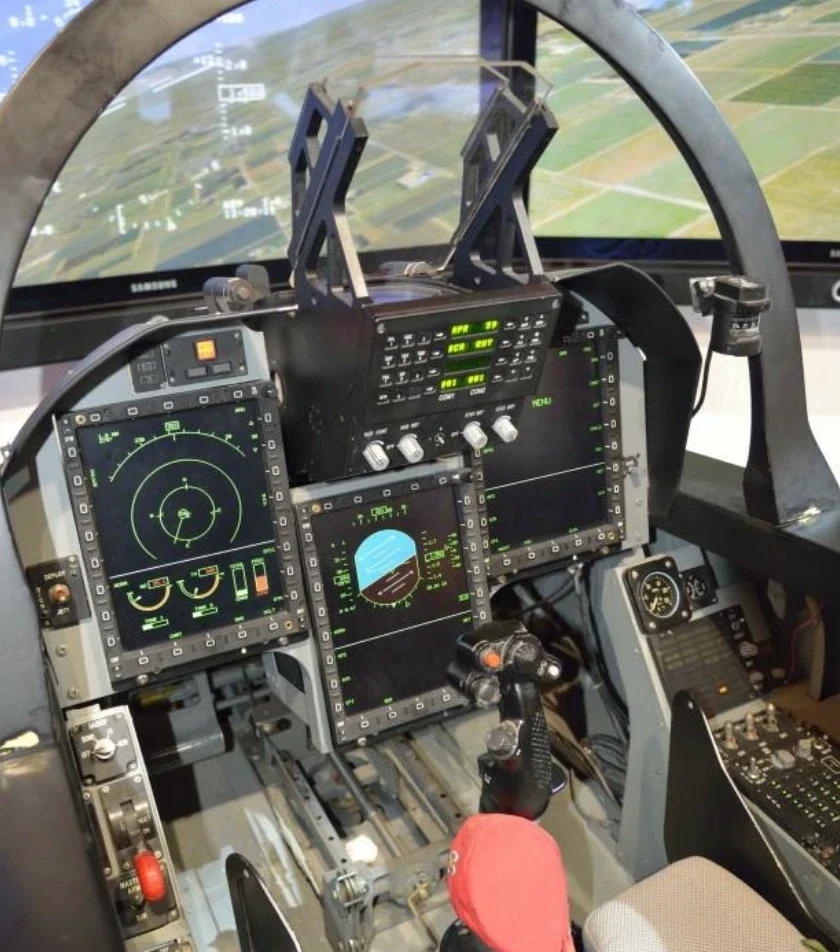

jf 17 block 3 cockpit
A view of the JF 17 Block 3 Cockpit

Additionally, the JF-17 Thunder Block 3 cockpit has been redesigned for greater situational awareness and ease of use. It features a glass cockpit with a wide-area display, which integrates flight data, radar information, and weapons systems in one streamlined interface. The new cockpit design also includes advanced targeting systems, offering pilots a significant edge in both offensive and defensive combat situations.

Armament and Combat Capabilities

The JF-17 Thunder is a versatile multirole fighter jet, capable of engaging both air and ground targets with a wide array of advanced weaponry. Its flexible armament system, combined with modern avionics, allows it to excel in various combat scenarios, from dogfights in the sky to precision strikes on the ground.

This capability is crucial for a nation like Pakistan, where a combination of cost-efficiency and operational effectiveness is key to maintaining a capable air force.

Air-to-Air Capabilities

The JF-17 Thunder is equipped with multiple air-to-air missiles, making it well-suited for aerial combat. It can carry the AIM-9 Sidewinder, a short-range infrared-guided missile, as well as the PL-5, a Chinese counterpart to the Sidewinder.

These missiles provide the JF-17 Thunder fighter jet with the ability to engage hostile aircraft at close range, with the added advantage of infrared guidance that allows for targeting in various conditions, even in radar-jamming environments.

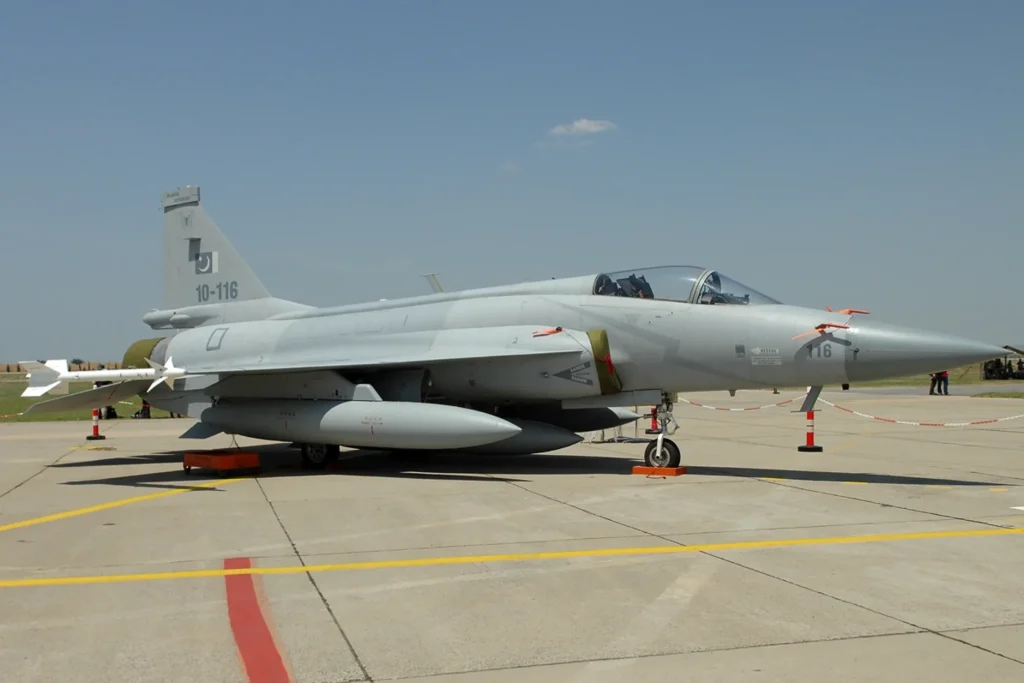

JF-17 Fighter
Pakistan Air Force JF-17 armed with PL-5 missile. Source: Wikimedia Commons

Additionally, the JF-17 Thunder can be outfitted with medium-range missiles, such as the PL-12 air-to-air missile. This missile allows the fighter to engage enemy aircraft at longer ranges, expanding the scope of its defensive and offensive capabilities. The JF-17 Thunder is also equipped with an electro-optical targeting system (EOTS), which helps improve targeting precision during air-to-air engagements.

Air-to-Ground Capabilities

In addition to its air superiority functions, the JF-17 Thunder is designed for air-to-ground missions, making it a highly effective platform for close air support (CAS), ground strike, and interdiction roles. It can carry a range of precision-guided munitions, including GBU-12 Paveway II laser-guided bombs and C-802 anti-ship missiles. These weapons enable the JF-17 Thunder to perform precision strikes against ground targets, including enemy infrastructure, bunkers, and armored vehicles.

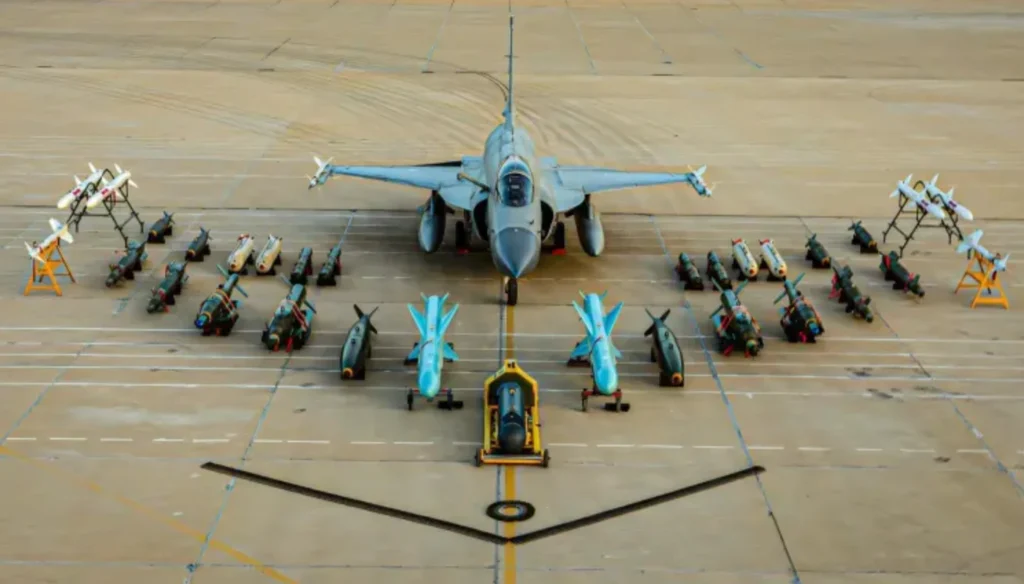

pakistan jf 17 thunder
JF 17 Thunder. Picture credit: Defense security Asia

The JF-17 Thunder also has the flexibility to deploy unguided bombs, such as the Mark 81 and Mark 82, as well as rockets and even cluster munitions. This wide variety of weapons allows the aircraft to conduct a range of air-to-ground missions, including interdiction, counterinsurgency, and precision bombing, with minimal collateral damage. The ability to carry heavy payloads on multiple hardpoints makes the JF-17 Thunder effective in multiple combat roles, ensuring its adaptability to evolving mission requirements.

Multi-role Flexibility

The JF-17 Thunder is built around the concept of multi-role flexibility, enabling it to switch between roles in a variety of combat environments. Its ability to transition from air-to-air combat to close air support, and even reconnaissance, makes it a valuable asset in any modern air force.

The aircraft’s onboard data link system allows it to receive real-time updates and integrate with other units in the battlefield, such as ground forces or airborne warning and control systems (AWACS).

Furthermore, the JF-17 Thunder is equipped with an advanced electronic warfare (EW) suite, which includes systems to jam or disrupt enemy radar and communications. This is a critical feature for ensuring the aircraft’s survivability in contested environments.

The JF-17 Thunder Block 3’s advanced radar, coupled with its electronic warfare capabilities, ensures that the aircraft remains effective in modern, multi-threat combat scenarios.

Variants and Upgrades

The JF-17 Thunder has undergone multiple upgrades and variants since its inception, each bringing enhanced capabilities to meet evolving operational needs. As a cost-effective, multirole fighter, the aircraft’s development has been driven by the need to continuously modernize to stay competitive in the fast-paced world of military aviation. From its initial entry into service to the latest JF-17 Block 3, each variant builds on the previous generation’s strengths while introducing new technologies and improvements.

JF-17 Block 1: The Foundation

The JF-17 Thunder Block 1 marked the beginning of the JF-17 program, entering service with the Pakistan Air Force (PAF) in 2007. Designed as a cost-effective multirole fighter to replace the aging fleet of Mirage III and F-7 aircraft, the Block 1 featured a basic avionics suite and a conventional radar system.

While its air-to-air and air-to-ground capabilities were limited by the technology available at the time, the JF-17 Block 1 laid the groundwork for future development, offering essential multirole functions at a significantly lower cost than Western fighters.

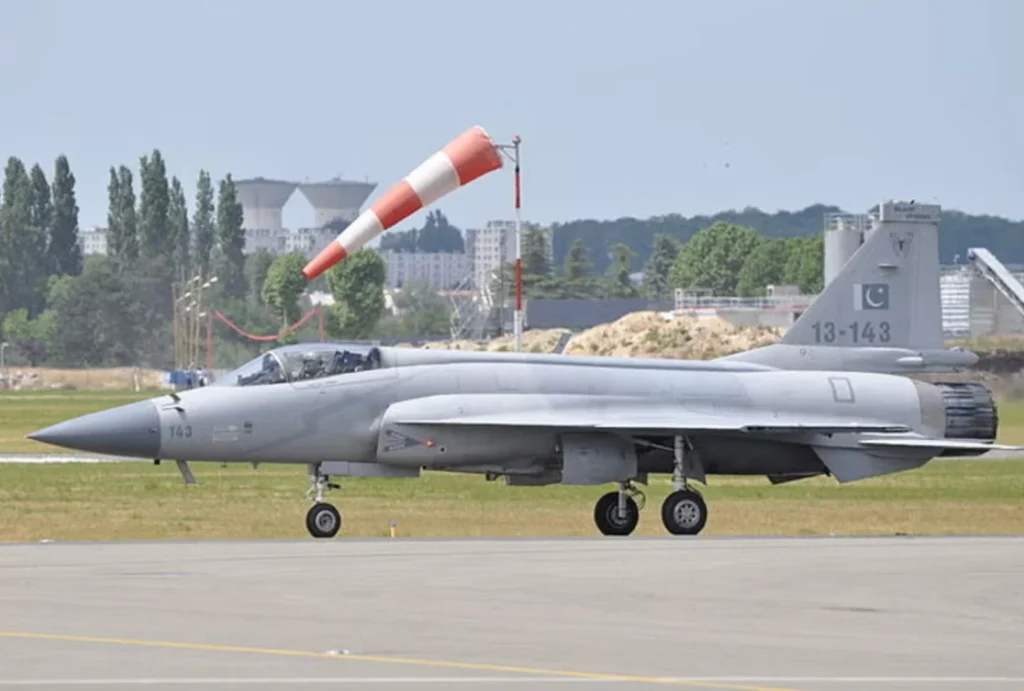

JF-17 Thunder Block 1
The JF-17 Thunder Block 1 was delivered in March 2007. Image courtesy of Eric Salard.

Block 1 was powered by the Klimov RD-93 turbofan engine and was capable of carrying a variety of weapons, including air-to-air missiles and bombs. While it lacked the advanced radar and avionics of later versions, it provided Pakistan with a reliable and affordable platform for defense, setting the stage for subsequent upgrades that would enhance its operational capabilities and performance in modern combat.

JF-17 Block 2: Enhanced Performance and Avionics

The JF-17 Thunder Block 2, introduced in 2010, represented a major upgrade over the Block 1, incorporating a more advanced KLJ-7 radar, which improved target detection and tracking capabilities. Block 2 also featured an electro-optical targeting system (EOTS) for enhanced precision in air-to-ground and air-to-air missions, alongside improved cockpit displays for better situational awareness. These upgrades allowed the JF-17 Block 2 to handle a wider range of operational roles, making it a more versatile and effective multirole fighter for Pakistan.

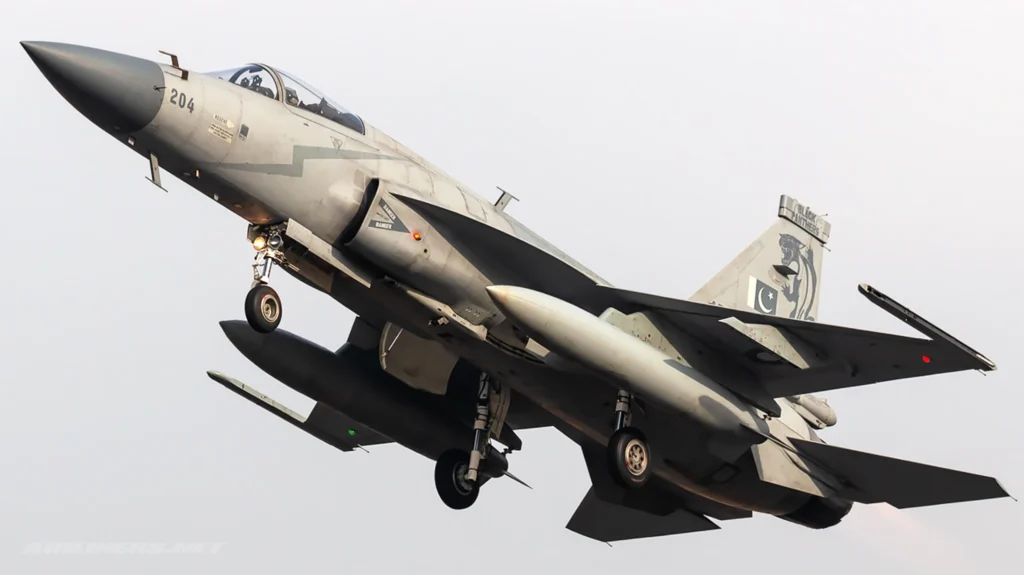

JF-17 block 2
JF-17 Thunder Block II – Pakistan. Photo credit: Airlines.net

In addition to its improved avionics, the JF-17 Block 2 included new data links that enabled better communication with other assets such as AWACS or ground radar systems, allowing for more coordinated operations. This version of the JF-17 Thunder significantly raised the aircraft’s combat capabilities, providing an affordable yet highly capable platform for both defense and offensive operations, including close air support and interdiction missions.

JF-17 Block 3: Modernization for the Future

The JF-17 Thunder Block 3, the most advanced variant of the JF-17 family, introduces significant improvements in radar, avionics, and weapon systems. The key upgrade in the Block 3 is the integration of the KLJ-7A AESA radar, providing superior target tracking and resistance to jamming.

With an upgraded glass cockpit, enhanced multifunctional displays, and improved weapon systems, including modern air-to-air missiles like the PL-15, the JF-17 Block 3 offers a substantial boost in performance over earlier variants, particularly in air superiority and precision strike roles.

jf-17 thunder block 3
The JF-17 Block III fighters demonstration for the President of Azerbaijan. Photo: Ministry of Defense of Azerbaijan.

Block 3 also includes an upgraded electronic warfare suite, improving survivability in hostile environments. These enhancements ensure the JF-17 Thunder Block 3 remains highly competitive in modern aerial combat, capable of taking on a variety of missions, from air-to-air combat to precision ground strikes. This variant sets the stage for future developments, establishing the JF-17 Thunder as a formidable multirole fighter for the PAF and potential export customers.

JF-17 Block 4: The Future of the Thunder

The upcoming JF-17 Thunder Block 4 is expected to build on the successes of the Block 3, with several new features aimed at improving its capabilities even further. While still under development, the Block 4 is anticipated to include an upgraded engine for greater thrust and performance, potentially improving the aircraft’s agility and operational range. The JF-17 Block 4 will also incorporate advanced stealth features, aimed at reducing its radar cross-section and enhancing survivability in contested airspace.

In addition to improved performance and stealth enhancements, the Block 4 is expected to offer better avionics, including more advanced radar and electronic warfare systems. The JF-17 Thunder Block 4 will likely also feature an increased payload capacity, expanding its range of weapon systems and allowing for more diverse mission profiles, including long-range strikes and deep interdiction. This variant is poised to further solidify the JF-17 Thunder’s role as a key asset in modern aerial warfare, not only for Pakistan but for international customers as well.

JF-17 Thunder vs. Global Competitors

The JF-17 Thunder is a strong contender in the light multirole fighter category, often compared to other cost-effective aircraft like the Saab Gripen C/D and F-16 Fighting Falcon. While the Gripen C/D offers superior avionics and radar systems, the JF-17 Thunder excels in affordability, making it an attractive option for countries with budget constraints. Despite its lower cost, the JF-17 remains highly versatile, especially with upgrades like the KLJ-7A AESA radar and modern weapons integration in the Block 3 variant.

Compared to the F-16 Fighting Falcon, the JF-17 Thunder offers a more budget-friendly solution while still providing significant multirole capabilities. While the F-16 has a more extensive combat history and advanced features, including AESA radars and superior range, the JF-17 offers similar performance in a more economical package. The JF-17’s lower operational and acquisition costs give it a clear advantage for countries seeking a modern fighter without the high price tag of Western aircraft.

The LCA Tejas, India’s indigenous multirole fighter, also competes in the same category as the JF-17 Thunder. While the Tejas features a more advanced engine and radar, the JF-17 outshines it in terms of overall cost-effectiveness. The JF-17 has already proven its operational effectiveness, especially in real-world combat situations like the 2019 India-Pakistan standoff, making it a reliable and proven fighter in comparison.

Conclusion

The JF-17 Thunder has proven itself as a capable and cost-effective multirole fighter, fulfilling critical roles in the Pakistan Air Force (PAF) and beyond. Its impressive performance in various combat scenarios, such as the 2019 India-Pakistan standoff, showcases its versatility and effectiveness in air-to-air, air-to-ground, and reconnaissance missions. The ongoing upgrades, like the Block 3 and future Block 4, continue to enhance its capabilities, ensuring it remains a modern and reliable aircraft for both defense and export.

What makes the JF-17 Thunder stand out is its affordability without compromising on performance. Offering a highly competitive alternative to more expensive Western fighter jets, the JF-17 is an attractive option for countries with limited defense budgets. Its low acquisition and operational costs, paired with its proven effectiveness, make it an ideal choice for nations seeking to modernize their air forces without the financial burden of advanced Western aircraft.

With its proven track record and continuous advancements, the JF-17 Thunder is set to remain a core asset for the Pakistan Air Force and a popular export choice for nations worldwide. As it continues to evolve, the JF-17 offers a powerful, cost-effective solution for modern aerial defense, securing its place in both regional and global air combat scenarios.
