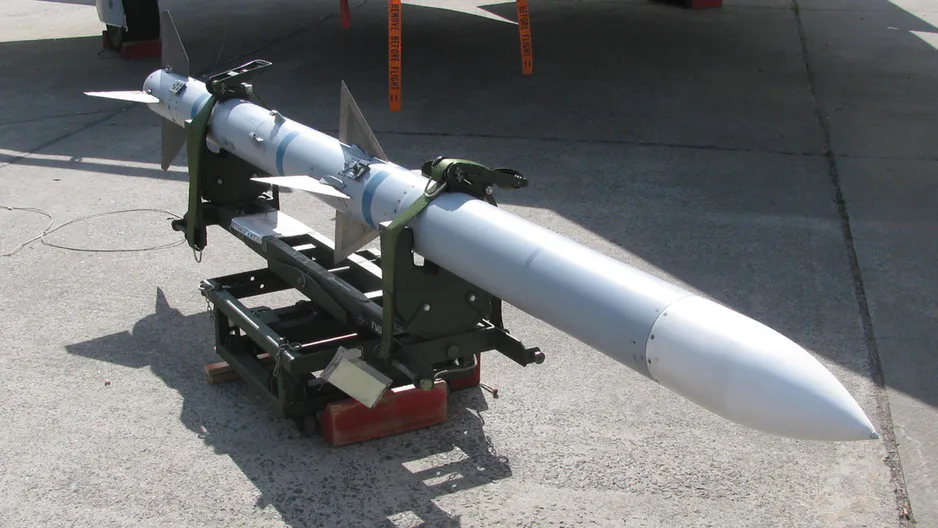

AIM-120 AMRAAM: The Backbone of Modern Air-to-Air Combat

The AIM-120 AMRAAM (Advanced Medium-Range Air-to-Air Missile) is a radar-guided, beyond-visual-range missile that has defined modern aerial warfare since its introduction in the 1990s. Developed by Raytheon for the U.S. military, this missile was designed to replace the older AIM-7 Sparrow and improve combat effectiveness with fire-and-forget capability, allowing pilots to engage targets without having to continuously guide the missile after launch. Its introduction marked a major shift in air superiority tactics, offering enhanced precision, greater pilot survivability, and superior versatility across platforms.

Over the years, the AIM-120 missile has seen widespread deployment across a range of U.S. and allied aircraft, including the F-15, F-16, F/A-18, F-22, and F-35. It has also been integrated into surface-to-air systems like NASAMS, demonstrating its adaptability beyond traditional air combat roles. With a solid combat record in conflicts like the Gulf War and the Syrian Civil War, the AIM-120 AMRAAM continues to prove its relevance in real-world engagements, often neutralizing threats before visual contact is made.

The missile has evolved through multiple variants—from the AIM-120A to the latest AIM-120D—each improving on range, speed, electronic warfare resistance, and guidance systems. With a range exceeding 160 kilometers in newer models, speeds of over Mach 4, and advanced mid-course guidance, the AIM-120 AMRAAM range and lethality make it the cornerstone of modern aerial deterrence. As air forces prepare for more complex, multi-domain conflicts, the AIM-120 remains central to global air defense strategy.

Technical Specifications of the AIM-120 AMRAAM

Understanding the AIM-120 AMRAAM specifications reveals why this missile has earned its reputation as a battlefield game-changer. Every element—from its physical design to its advanced guidance systems—is meticulously engineered to maximize kill probability while minimizing pilot workload.

Let’s begin with the AIM-120 AMRAAM dimensions. The missile is about 12 feet (3.66 meters) in length, a size that balances internal fuel capacity with aircraft compatibility. The AIM-120 length allows it to be housed inside the weapons bays of stealth platforms like the F-22 Raptor and F-35 Lightning II while still being compact enough for external carriage on legacy fighters. The diameter is approximately 7 inches (178 mm), and its wingspan stretches to about 20.7 inches (525 mm), designed for stable aerodynamic performance during high-speed flight.

In terms of weight, the AIM-120 weight is approximately 335 pounds (152 kilograms). This includes a warhead weight of about 50 pounds (22.7 kilograms). The warhead itself is a high-explosive blast fragmentation type, specifically designed to incapacitate or destroy high-speed, maneuvering aircraft. This payload is triggered by a proximity fuse, which detonates the missile when it’s within lethal distance of its target—ideal for fast-moving dogfights where direct hits are challenging.

One of the most notable aspects is the AIM-120 AMRAAM speed. The missile can travel at speeds exceeding Mach 4, which translates to over 3,000 miles per hour (4,828 kilometers per hour). This incredible velocity means that the AIM-120 can close the distance to an enemy aircraft in seconds, reducing the opponent’s reaction time and increasing the probability of a successful intercept.

The AIM-120 range varies by variant. The earliest versions like the AIM-120A had a range of around 50 to 70 kilometers, which was considered revolutionary at the time. But modern variants like the AIM-120D AMRAAM push the limits even further. The AIM-120D range is estimated at over 160 kilometers (roughly 100 miles), thanks to a more efficient rocket motor and improved flight control software. This extended reach is particularly useful in BVR engagements, allowing a launch platform to strike before the enemy even knows it’s being targeted.

As for the AIM-120 AMRAAM missile cost, it has steadily increased over the years as capabilities have improved. In the early 2000s, each missile cost around $400,000. Today, depending on the variant and order size, the AIM-120 cost can range between $1 million to $1.5 million per missile, especially for the AIM-120D series. While expensive, the cost is justified by its precision, speed, and survivability enhancements.

The missile is compatible with nearly all Western air superiority platforms and integrates seamlessly with modern avionics and fire-control systems. This plug-and-play versatility ensures that allied nations can easily incorporate the AIM-120 missile into their defense strategies without extensive upgrades.

Variants and Upgrades of the AIM-120 AMRAAM

Since its inception, the AIM-120 AMRAAM has undergone a series of incremental upgrades, each improving on the weaknesses of its predecessor and adapting to the evolving challenges of modern air combat. The different versions—ranging from the original AIM-120A to the most recent AIM-120D AMRAAM—highlight how technological innovation has kept this missile relevant for more than three decades.

AIM-120A: The Pioneer

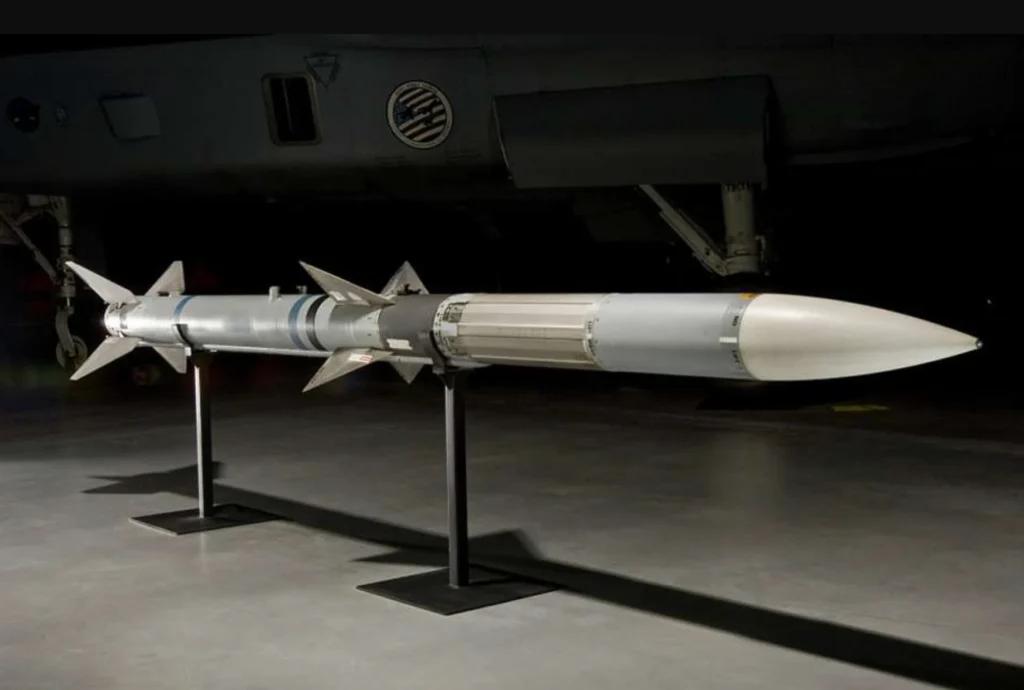

The AIM-120A, introduced in the early 1990s, marked a turning point in air-to-air missile technology. It brought true “fire-and-forget” capability to frontline fighter aircraft. This meant pilots could launch the missile and immediately break away, improving survivability in multi-threat environments. Though revolutionary, the AIM-120A had a relatively limited range—roughly 50–70 km—and lacked modern datalink features. It served as the foundation for future enhancements.

AIM-120B: Smarter Electronics

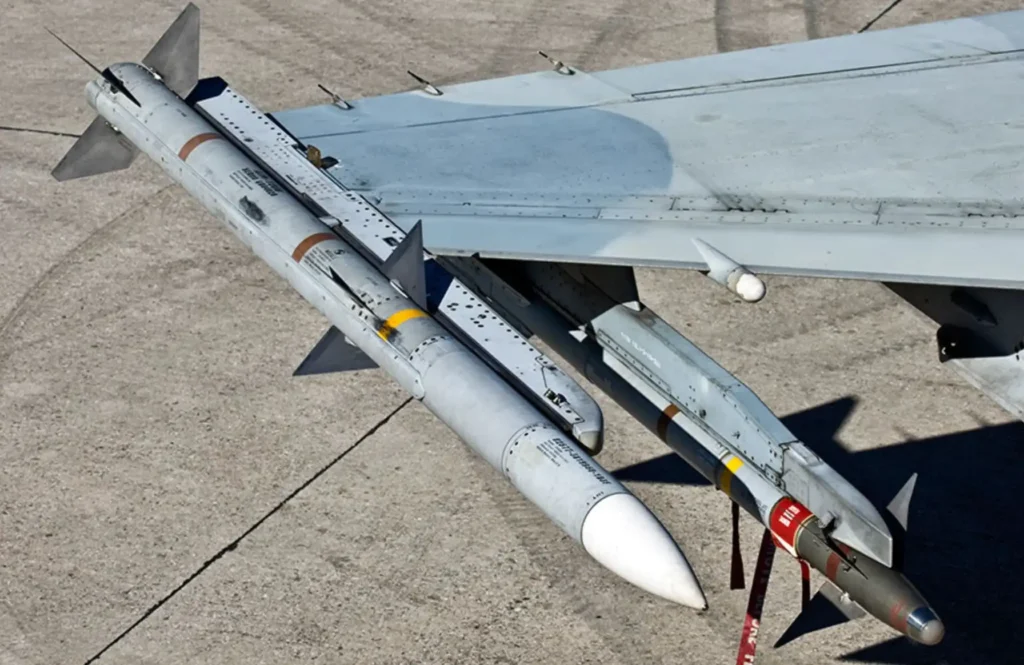

The AIM-120B built on the original design but featured reprogrammable microprocessors, allowing for in-the-field software upgrades. This meant that missile behavior could be adjusted without returning to the factory. While the AIM-120B didn’t significantly extend range or speed, it improved guidance logic and counter-countermeasure (ECCM) performance, which proved useful against jamming attempts in real combat.

AIM-120C Series: More Compact, Longer Reach

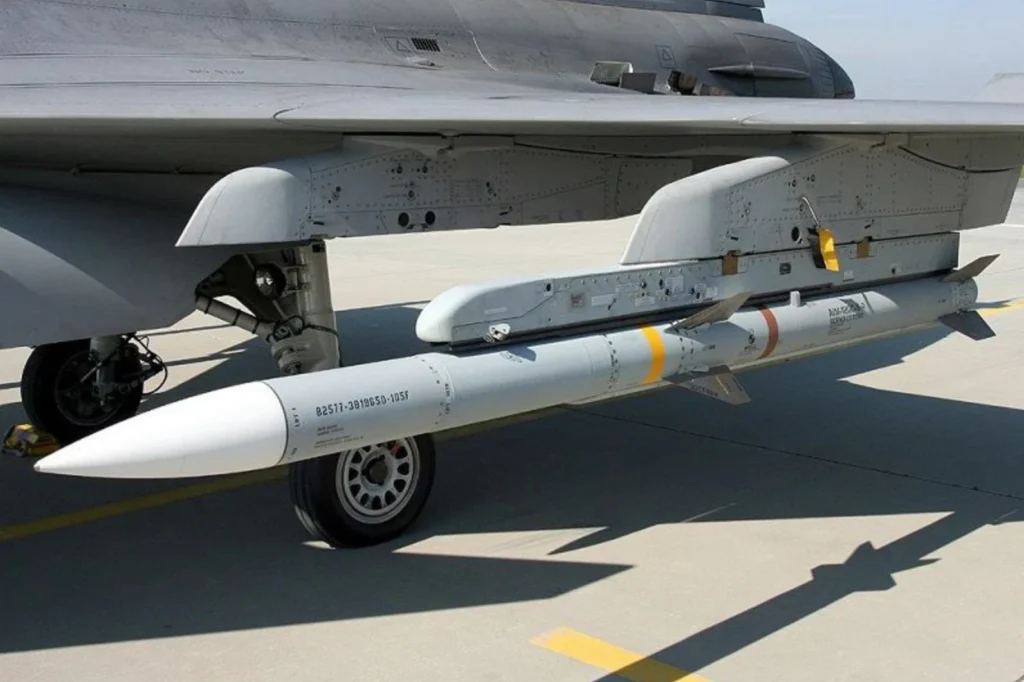

The AIM-120C variants introduced a reshaped airframe with clipped fins to allow internal carriage in stealth fighters like the F-22. These versions were also outfitted with more compact electronics, allowing additional room for increased propulsion capability. Among the key variants:

• AIM-120C-5: Extended range compared to earlier models, along with better target discrimination.

• AIM-120C-7: Improved guidance, better resistance to electronic jamming, and enhanced kinematics for maneuvering against agile targets.

• AIM-120C-8: The latest in the C-series, this variant includes many features of the D model, including improved range and guidance. The AIM-120C-8 is currently one of the most exported AMRAAMs globally.

Notably, the AIM-120C-7 and C-8 have become the export standard for many U.S. allies including Japan, South Korea, and NATO partners. Their performance against advanced air threats—like Russia’s Su-35 or Chinese J-16—has made them a staple in regional defense strategies.

AIM-120D: The Most Advanced AMRAAM

The AIM-120D AMRAAM is the most advanced version currently in U.S. service. It represents a quantum leap in capability over previous iterations. With an estimated AIM-120D range of more than 160 kilometers, this missile significantly increases engagement distances—giving the shooter the first-strike advantage in most scenarios.

Beyond range, the AIM-120D includes several key upgrades:

• Two-way datalink: Enables real-time course correction and retargeting, improving hit probability against maneuvering or fleeing targets.
• GPS-aided navigation: Enhances mid-course accuracy before terminal homing begins.
• Enhanced kinematics: More powerful propulsion and improved control surfaces allow the missile to engage fast, highly agile aircraft at extended ranges.

Although the AIM-120D was initially plagued by developmental delays and rising costs—reportedly upwards of $1.5 million per unit—it has become a cornerstone of U.S. air dominance, especially when paired with fifth-generation aircraft like the F-22 and F-35.

Operational History of the AIM-120 AMRAAM

The AIM-120 AMRAAM saw its first operational use in 1992, when a U.S. F-16 downed an Iraqi MiG-25 in the no-fly zone, marking the first successful kill with a fire-and-forget missile. Since then, the AMRAAM has participated in numerous conflicts, including the Balkans, Kosovo, Iraq, and Syria. It has been credited with at least 16 confirmed air-to-air kills, primarily involving enemy fighters like MiG-29s and Su-22s. The missile’s ability to engage targets beyond visual range has redefined modern aerial combat, allowing pilots to strike first while remaining out of harm’s way.

Throughout its service, the AIM-120 missile has been proven effective against both manned and unmanned threats. In 2017, a U.S. Navy Super Hornet shot down a Syrian Su-22 using an AIM-120, highlighting its relevance even in modern, contested airspaces. U.S. allies have also employed the missile successfully; for example, Saudi forces used it in a ground-based NASAMS system to intercept a Houthi-launched missile, showcasing the AMRAAM’s versatility across air and surface platforms.

As of today, over 36 countries operate the AIM-120 AMRAAM, with thousands of units produced. Its consistent track record and adaptability to evolving threats—such as electronic warfare and advanced countermeasures—underscore its long-term value. Whether launched from a stealth fighter or integrated into allied air defenses, the missile’s battlefield performance proves it remains a cornerstone of Western air superiority strategy.

Integration with Fighter Jets and Ground Systems

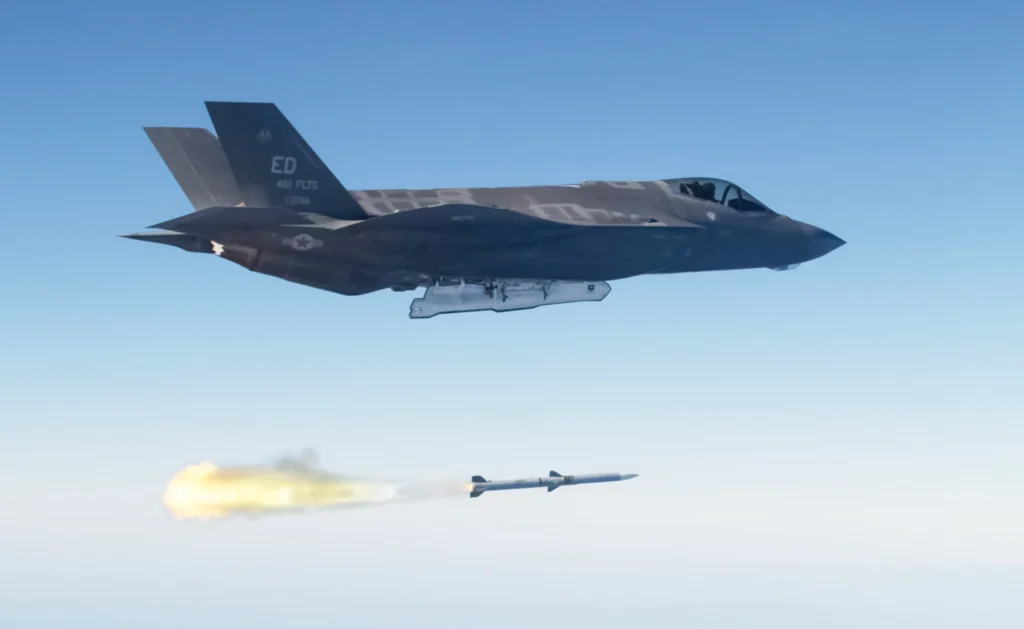

The AIM-120 AMRAAM is a versatile missile used across a wide variety of fighter jets, from older 4th-generation platforms to modern 5th-generation stealth fighters. Its compatibility with aircraft like the F-15E, F-16, F/A-18, F-22, and F-35 allows it to engage enemy targets at long ranges, often beyond visual contact. The AIM-120D AMRAAM, for instance, can be launched from the F-22 Raptor at distances over 160 kilometers, offering an edge in air superiority.

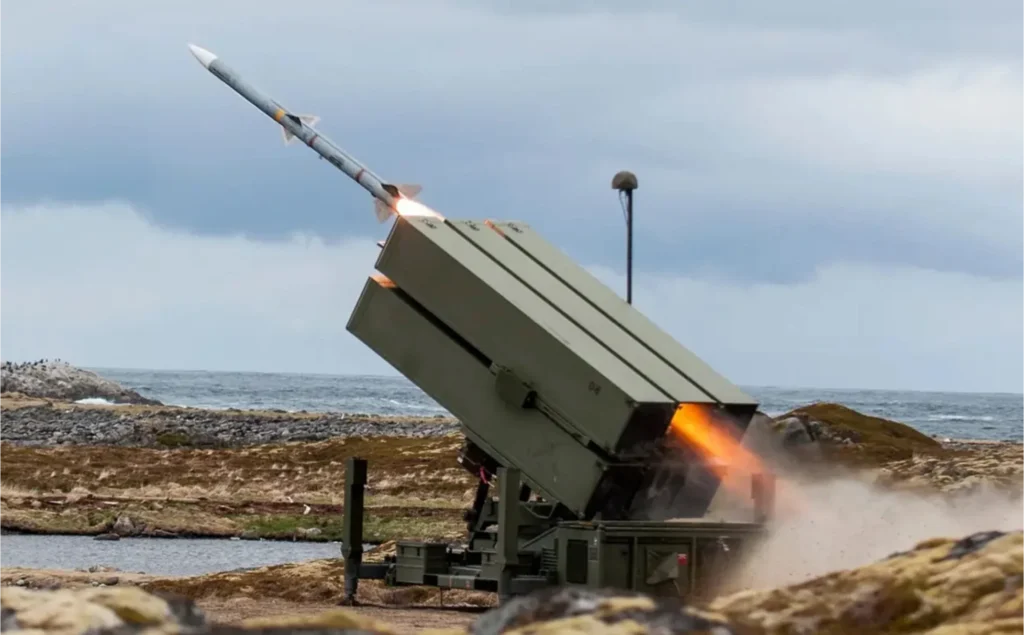

The missile is not just restricted to air-to-air combat. It has been integrated into ground-based systems, such as the NASAMS (Norwegian Advanced Surface-to-Air Missile System), where it defends against both aircraft and ballistic missile threats. Countries like the United States, Spain, and Norway have successfully employed these systems, demonstrating the AIM-120’s adaptability in various defense scenarios.

AIM-120 missiles also excel in electronic warfare environments, where modern jamming techniques challenge conventional weapons. The AIM-120D features a two-way datalink, providing real-time course corrections and enhancing accuracy even when the target maneuvers. This feature, combined with its resistance to interference, ensures its effectiveness against advanced electronic threats.

Looking ahead, the AIM-120 missile will continue to play a vital role in the future of air combat, integrating seamlessly with next-gen platforms like the F-35. Its multi-role capabilities and constant upgrades ensure it will remain a cornerstone of air defense for decades to come.

Comparison with Other Missiles

The AIM-120 AMRAAM competes with several advanced air-to-air missiles, each offering unique capabilities. One notable competitor is the R-77 (AA-12 Adder), Russia’s version of the AMRAAM. While both missiles share similar fire-and-forget capabilities and active radar guidance, the AIM-120 generally outperforms the R-77 in terms of range. The AIM-120D can exceed 160 km, whereas the R-77’s range is typically limited to 80-110 km. This gives the AMRAAM an edge in BVR combat, allowing pilots to engage targets at greater distances.

Another competitor is the MBDA Meteor, which offers even more impressive capabilities, particularly in speed and maneuverability. The Meteor’s ramjet engine allows it to sustain hypersonic speeds over long ranges, while the AIM-120 relies on solid fuel. The Meteor also integrates superior data link capabilities, making it more resistant to countermeasures and more flexible in dynamic combat environments. However, the AIM-120 remains more widely deployed globally, with a significant number of NATO forces relying on it.

Read also: Vympel R-37 Missile: Russia’s Long-Range Air-to-Air Weapon

The Aster 30 is a ground-based air-defense missile that competes with the AIM-120 in terms of versatility. While it is primarily designed for intercepting ballistic missiles and aircraft, its range of 120 km is shorter than that of the AIM-120D. However, the Aster 30‘s ability to launch from both naval and land-based platforms gives it a unique advantage in surface-to-air defense. The AIM-120, in contrast, is strictly air-launched, making it less versatile in a multi-domain defense role.

The Python 5, Israel’s advanced short-to-medium-range missile, competes with the AIM-120 in close-quarters combat. The Python 5 excels in agility and infrared homing, making it highly effective in WVR (within visual range) engagements. However, its range is much shorter than the AIM-120, with an effective engagement distance of just 20-30 km. This limits its utility in long-range scenarios where the AIM-120‘s longer range and radar-guided capabilities make it more effective.

In conclusion, while the AIM-120 AMRAAM faces competition from missiles like the R-77, Meteor, and Python 5, its combination of range, speed, and integration across a variety of platforms secures its place as a dominant force in modern air combat. Although newer systems may surpass the AMRAAM in specific areas, its ongoing evolution ensures it remains a reliable and powerful missile for both BVR and close-range engagements.

Conclusion

The AIM-120 AMRAAM (Advanced Medium-Range Air-to-Air Missile) is one of the most successful and widely used air-to-air missiles globally. With variants like the AIM-120A, AIM-120C, and AIM-120D, it boasts impressive features such as beyond-visual-range (BVR) capabilities, high-speed launches exceeding Mach 4, and a versatile design that enables compatibility with a wide range of aircraft. The AIM-120 AMRAAM provides air forces with superior targeting accuracy and the ability to engage multiple threats at extended ranges, making it an essential asset in modern combat.

The missile’s success is evident in its operational history, with notable kills in multiple conflicts, from the Gulf War to operations in Syria. Its ability to operate in contested environments, where electronic warfare and countermeasures are prevalent, makes it invaluable for securing air superiority. Integrated into U.S. and NATO fighters like the F-15, F-16, F-22, and F-35, as well as ground-based systems like NASAMS, the AIM-120 is a vital component of both offensive and defensive air strategies.

As the AIM-120 AMRAAM continues to evolve, its adaptability ensures it will remain at the forefront of air defense systems. With its proven range, speed, and precision, this missile stands as a global standard in air superiority, ensuring that it will play a crucial role in air combat for years to come. Its integration into future fighter jets and missile defense systems further solidifies its importance in modern warfare.
